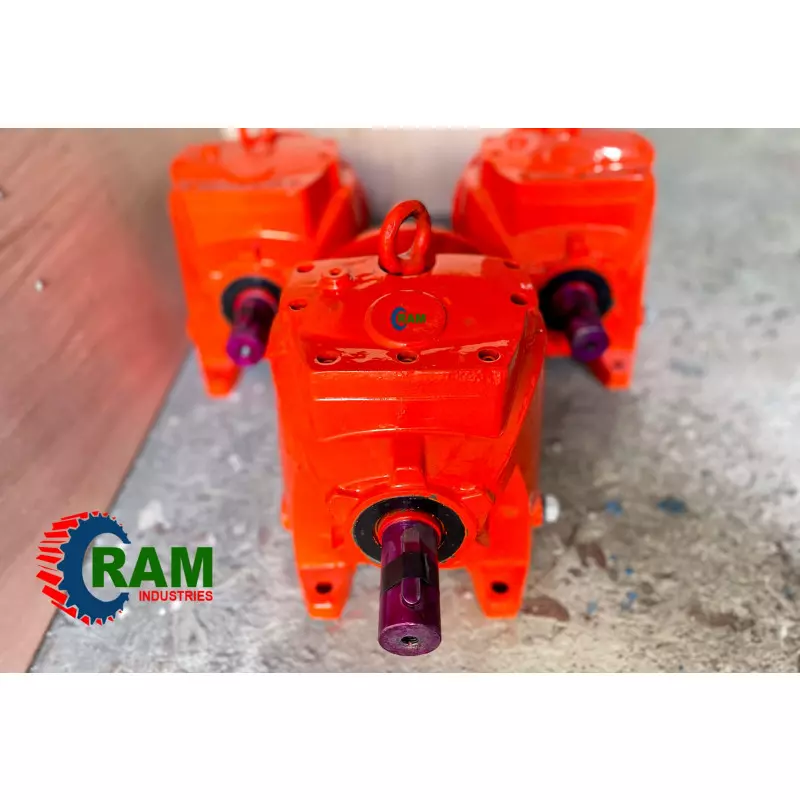

Inline Helical Gear Box Co Axial Gear Drive Supplier For Industries
Details of Inline Helical Gear Box
Built to Perform: Inline Helical Gear Box Units
We are supplying inline helical gearbox units manufactured to deliver high efficiency, minimal backlash, and quiet operation. These gear units are built for continuous load applications, integrating directly into transmission setups with minimal footprint.
The inline gear layout allows straight-through power transmission without angular deviation. Gears are helical-cut, hardened, and profile-ground for perfect tooth engagement and silent rotation.
Co-Axial Shafting – In-line arrangement simplifies coupling with motors and driven equipment. Balanced Load Distribution – Gear teeth contact is gradual, reducing wear and allowing higher torque load. Speed Ratios from 3:1 to 100:1 – Manufactured in single or double-stage reductions for industrial flexibility.
Ideal for Industries Working Nonstop
These gearboxes are being widely adopted in industrial hubs like Pune and Coimbatore, supporting OEM assembly lines, mixers, and automation systems.
Our models are compact, yet powerful. Precision bearings and case-hardened shafts ensure mechanical stability even at high RPMs.
Mounting Styles Offered: • Foot mounted • Flange mounted • Shaft mounted (optional adaptors)
Material Build Options: • Cast Iron for heavy load • Aluminum alloy for lightweight setups
— Textile machine rollers and dyeing drives — Agitators and slurry mixers in chemical plants — Belt conveyors for packaging and transfer systems — Sheet metal machines and stamping lines — Paper mills and extruder lines
Features at a Glance
| Parameter | Specification |
|---|---|
| Gear Type | Helical, surface hardened |
| Shaft Orientation | Inline / Coaxial |
| Ratio Range | 3:1 to 100:1 |
| Transmission Efficiency | Up to 96% |
| Input Type | Motor shaft / IEC motor flange |
| Lubrication | Grease-packed or splash oil bath |
Each gearbox is manufactured to minimize downtime, support reversible motion, and allow long service intervals with minimal maintenance. Motor adapters and torque arms are also available.
– High Load Tolerance – Quiet Operation (Low Vibration) – Backlash-Free Models on Request – Suitable for Dynamic or Intermittent Loads
Feedback & Contact Us
We are supplying inline helical gearboxes tailored for industrial users requiring durability, high torque output, and versatile mounting support. In addition to our commitment to quality and customer satisfaction, our reputation is built on accurate gear ratios, long gear life, and responsive engineering support. For bulk project enquiries or shaft compatibility checks, reach our team today.
Offered Product
Inline Helical Gear Box
An Inline Helical Gearbox Is A Type Of Gear Reducer That Uses Helical Gears To Transmit Power From One Shaft To Another. It Is Widely Used In Various Industrial Applications For Controlling Speed And Torque Transmission In Machines And Equipment. The "inline" Designation Refers To The Configuration Of The Input And Output Shafts, Which Are Aligned Along The Same Axis.Applications Of Inline Helical Gearbox:Material Handling Systems:Inline Helical Gearboxes Are Commonly Used In Conveyo... Read moreInline Helical Gear Box Manufacturering In Maharashtra
Precision-Engineered Inline Helical Gear Box For Industrial EfficiencyWe Are A Company Engaged In Manufacturing Superior-quality Inline Helical Gear Boxes Built For High Torque Transmission And Smooth Power Output. Known For Compact Design And Long-lasting Performance, These Gearboxes Are Widely Used For Mechanical Drive Systems Across Various Sectors.Salient Features Of Our Inline Helical Gear Box. Rigid Housing Structure Ensures Vibration-free Operation . Precision-ground Helical Gears F Continue
Inline Helical Gear Box Supplier For Industrial Use
Inline Helical Gear Box For Smooth Power TransmissionWe Specialize In The Manufacture Of High-performance Linear Helical Gearboxes, Widely Used For Precise And Efficient Power Transmission In Industrial Machinery. Leveraging Our Expertise In Gearbox Manufacturing, These Units Are Designed To Ensure Smooth Operation, Low Noise, And The High Torque Required In Demanding Mechanical Installations.Our Inline Helical Gearboxes Are Preferred For Their Compact Design, Superior Alignment, And Long Op Continue
Inline Helical Gear Box Manufacturer Karnataka
Torque With Inline Power SystemsWe Offer Gear Units Engineered To Provide Precise Torque Transmission In A Straight-line Setup Using Helical Gearing. These Systems Deliver Efficient Power Flow In Compact Spaces Where Shaft Alignment Is Critical Across Conveyors, Mixers, And Drives. Our Gearboxes Are Manufactured With Case-hardened Gears, Aligned Bores, And Robust Housings To Maintain Quiet Operation And Mechanical Reliability Under Constant Load Cycles.With The Firm Supplying Gear Units In M Continue
