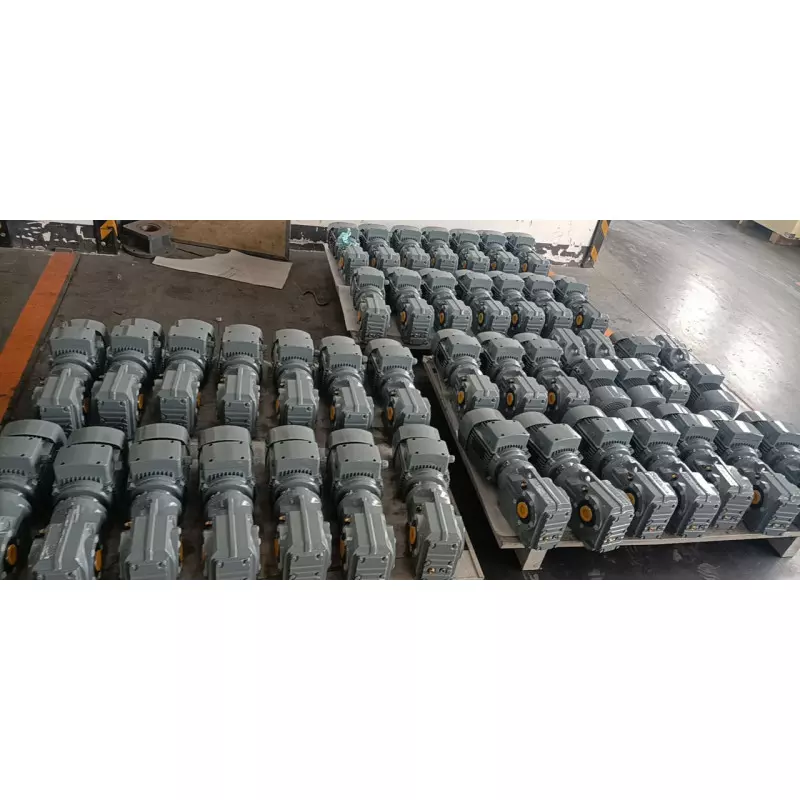

K Series Gearbox Manufacturers In Raigarh
Details of K Series Gearbox
For Right-Angle Power Transmission
We offer precision-manufactured K Series Gearboxes ideal for high-torque and right-angle power transmission. Engineered for continuous-duty operations, these gearboxes are widely adopted in material handling, conveyors, and heavy industrial drive systems.
What It Does
A K Series Gearbox is a helical-bevel geared motor with a right-angle output. It combines the efficiency of helical gears with the compactness of bevel gears to deliver maximum torque in minimal space.
Where It’s Used
- Conveyors and belt feeders
- Packaging and bottling lines
- Mixers, crushers, and agitators
- Lifting equipment and hoists
- Wastewater treatment machinery
These products are used in industrial applications requiring compact design, high torque, and maintenance-friendly gear systems.
Major Features
- Helical-bevel gear arrangement
- High overload capacity
- Right-angle output shaft
- Hollow shaft or solid shaft options
- Built-in motor flange or IEC mounting adaptability
Advantages in Industrial Use
- High mechanical efficiency (up to 96%)
- Compact design ideal for tight spaces
- Quiet and smooth-running operation
- Long life with minimal maintenance
- Versatile mounting positions (foot, flange, shaft-mounted)
- Resistant to dust, moisture, and industrial abuse
- Compatible with various AC or servo motors
Technical Specifications
- Ratio range: 8.2:1 to 13459:1
- Output torque: Up to 5000 Nm
- Motor power: 0.12 kW to 45 kW
- Gear stages: 2 or 3-stage options
- Output shaft: Hollow/solid keyed
- Protection: IP55 / IP65 enclosures available
Why Industries Prefer K Series Gearboxes
K Series Gearboxes are used in commercial and industrial applications that demand high efficiency and reliability in space-limited installations. Their modular build supports seamless integration into new or existing mechanical setups.
Installation & Usage Tips
- Ensure precise alignment between the motor and the load
- Use an appropriate coupling or torque arm when shaft-mounted
- Monitor oil level and gear wear regularly
- Choose gear ratio based on application torque/speed requirement
Offered Product
K Series Gearbox
The K Series Gearbox Is A High-performance, Heavy-duty Gearbox Designed For A Wide Range Of Industrial Applications. It Features A Robust Design With Helical Or Bevel Gears, Ensuring Smooth, Efficient, And Reliable Power Transmission. The K Series Is Known For Its Versatility, Durability, And Ability To Handle High Torque While Offering Compact Dimensions For Space-saving Installations.Applications:Conveyor Systems:Widely Used In Conveyor Systems For Material Handling In Industries L... Read moreK Series Gearbox Manufacturers In Bally
K Series Gearbox – Compact Helical-Bevel Drive For Right-Angle TransmissionThe K Series Gearbox Is A Helical-bevel Geared Motor System Engineered For Right-angle Power Transmission With High Torque Output And Energy Efficiency. Its Compact Design And Low Maintenance Requirements Make It A Preferred Choice For Conveyors, Mixers, Agitators, And Lifting Equipment Across A Range Of Industrial Environments.Industrial ApplicationsThese Gearboxes Are Used In Systems Requiring Angular Torque Continue
K Series Gearbox Manufacturers In Chennai
High-Torque Helical Bevel Drive For Compact InstallationsA K Series Gearbox Is A Right-angle Gear Reducer That Uses A Combination Of Helical And Bevel Gears To Deliver Efficient Torque Transmission In Compact Spaces. Known For Its High Load Capacity, Quiet Operation, And Modular Mounting Options, The K Series Gearbox Is Ideal For Material Handling Systems, Mixers, Conveyors, And Heavy-duty Machinery.Drive Your Equipment With Smooth, Silent PrecisionThe K Series Gearbox Provides Powerful To Continue
High Torque Gearbox For Space Conscious Installations Madurai
Trusted Gearbox For Heavy-Duty MachineryBacked By Extensive Experience In Industrial Transmission Systems, Our Firm Presents The K Series Gearbox—a High-performance Right-angle Drive Built To Sustain Demanding Torque Loads In Compact Layouts. Engineered With Hardened Helical Gears And A Modular Structure, This Gearbox Provides Both Strength And Adaptability Across Varied Mechanical Environments.These Gear Units Ensure Superior Operational Efficiency With Minimal Footprint, Making Them Continue
