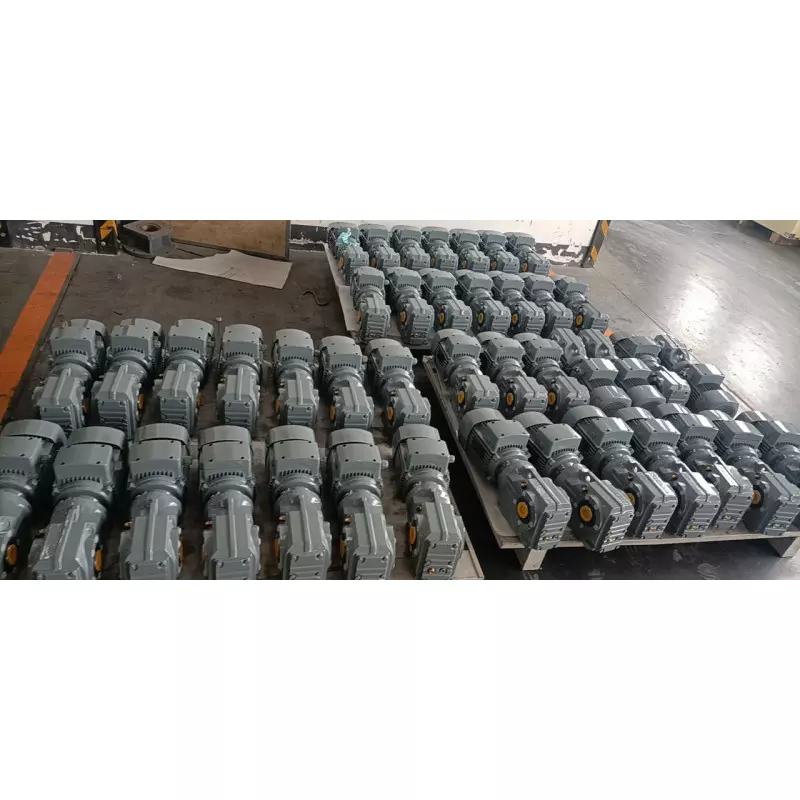

K Series Gearbox Supplier Cuttack
Details of K Series Gearbox
Engineered for Precision and Reliability
The K Series Gearbox delivers robust performance, high torque efficiency, and long operational life across diverse industrial applications. Designed for heavy-duty machinery, the gearbox combines precision engineering with value-driven performance metrics, meeting the evolving demands of modern manufacturing and automation.
Features and Value-Driven Benefits
- High torque transmission efficiency up to 96%
- Modular design for easy integration and scalability
- Compact footprint with high load capacity
- Noise and vibration reduction through helical gearing
- Durable cast iron or aluminum housing
- Optimized lubrication channels for minimal maintenance
- Wide operating temperature tolerance
Technical Specification
| Parameter | K Series Gearbox Specification |
|---|---|
| Gear Type | Helical, parallel shaft |
| Shaft Alignment | Inline / Right-angle options |
| Power Range | 0.5 HP to 250 HP |
| Torque Capacity | Up to 20,000 Nm |
| Gear Ratio | 1:3 to 1:180 |
| Mounting Options | Foot, flange, custom |
| Housing Material | Cast iron / Aluminum alloy |
| Lubrication | Oil bath, grease (optional) |
| Efficiency | Up to 96% |
| Noise Level | ≤ 75 dB |
Manufacturing and Quality Assurance
- CNC precision cutting for accurate gear teeth
- Controlled heat treatment for hardness and fatigue resistance
- Multi-stage inspection for dimensional accuracy
- Dynamic load testing under rated torque
- Noise and vibration evaluation per ISO standards
- Rigorous sealing tests to prevent leakage
- Consistent batch-to-batch quality verification
Industrial Applications
- Conveyor systems in logistics and packaging
- Sugar, steel, and cement processing
- Textile and paper machinery
- Automation and robotics integration
- Food and beverage processing lines
- Heavy-duty mixers and crushers
Machine Insider – Expert Tips
- Optimizing Gearbox Life: Regular monitoring, correct torque application, and preventive lubrication scheduling ensure extended operational cycles.
- Integration Efficiency: Modular couplings and standard mounting options reduce installation time and cost.
- Sustainability Impact: Energy-efficient operation reduces operational carbon footprint while minimizing maintenance expenses.
This authoritative content positions the K Series Gearbox as a premium, and industry-ready solution for engineers, plant managers, and machine designers.
Offered Product
K Series Gearbox
The K Series Gearbox Is A High-performance, Heavy-duty Gearbox Designed For A Wide Range Of Industrial Applications. It Features A Robust Design With Helical Or Bevel Gears, Ensuring Smooth, Efficient, And Reliable Power Transmission. The K Series Is Known For Its Versatility, Durability, And Ability To Handle High Torque While Offering Compact Dimensions For Space-saving Installations.Applications:Conveyor Systems:Widely Used In Conveyor Systems For Material Handling In Industries L... Read moreBevel Gearbox Manufacturer Mumbai
Best Power Transmission For Industrial ApplicationsWe Are Manufacturing Bevel Gearbox Solutions Designed To Deliver Efficient Power Transmission Where Directional Change Of Drive Is Required. We Are Offering Bevel Gearbox Units Suitable For Applications Requiring Right-angle Or Angular Power Transfer. These Gearboxes Support Smooth Torque Transmission While Maintaining Consistent Speed And Load Control.With Our Deft Engineering Approach, Bevel Gearbox Systems Are Developed To Reduce Vibratio Continue
Industrial Gearbox Manufacturers In Pune
We Are Leading Vendors And Exporters Of Heavy Duty Gearboxes, Engineered To Deliver High Torque, Reliable Performance, And Long-lasting Durability For Industrial Applications. We Specialize In Designing Gear Solutions That Meet The Demanding Requirements Of Heavy Machinery, Manufacturing Plants, And Material Handling Systems. Furthermore, We Produce Gearboxes Using High-grade Materials, Including Alloy Steel And Hardened Gears, To Ensure Resistance To Wear, Corrosion, And Fatigue. Additionally, Continue
Industrial Gearbox Manufacturers In Indore
With A Strong Focus On Quality And Customer Satisfaction, We Offer A Durable Range Of Industrial Gearboxes That Comply With Industry-defined Standards In Indore. These Gearboxes Are Developed Under Expert Supervision Using Modern Machinery And Quality-tested Materials, Ensuring Dependable Performance And Long-term Usability. Their Design Supports Smooth Power Transmission And Minimal Maintenance, Making Them Suitable For Various Industrial Applications. Available In Multiple Specifications, Thes Continue
