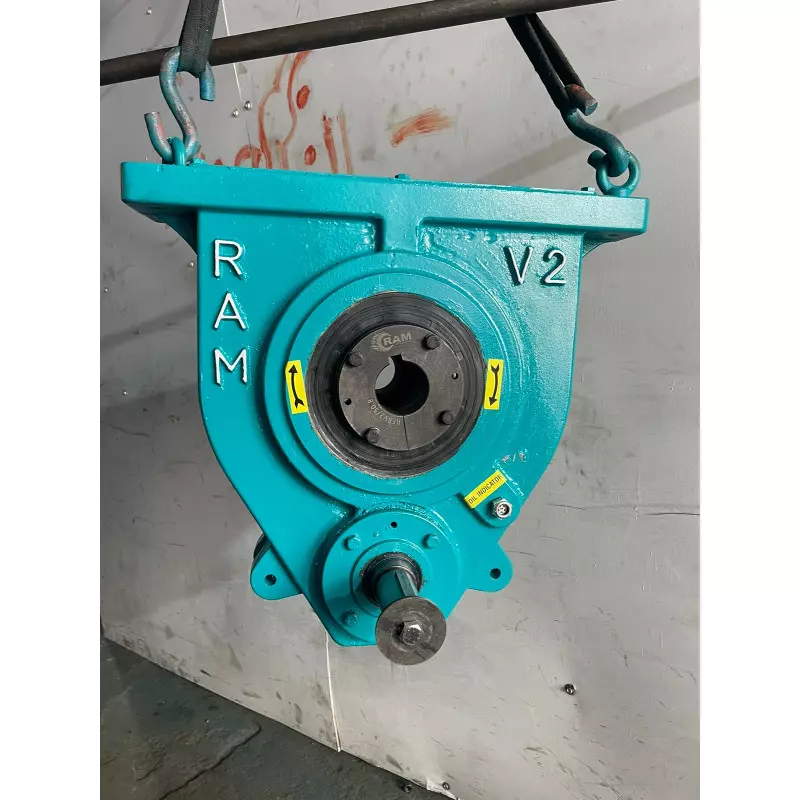

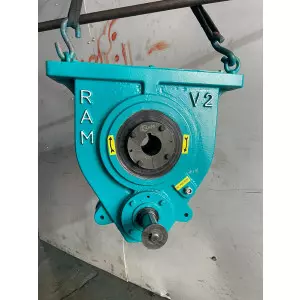

How to Implement a Strong QMS for V-Series Gearbox

A robust QMS ensures that your gearbox meets performance, reliability, and safety standards, reduces warranty claims, and improves customer satisfaction.

1. Establish Quality Objectives for the Gearbox

• Engineering Objectives
• Achieve required torque and speed reduction ratio accuracy.
• Maintain runout tolerance (e.g., shaft concentricity within X mm).
• Achieve noise/vibration level within defined limits.

Manufacturing Objectives

• Zero defects in gear teeth profile.
• Consistent hardness level after heat treatment.
• Accurate taper lock bush fitment tolerance.
• Customer & Reliability Objectives
• Reduce failures in field by
• Improve on-time delivery

2. Define Processes & Process Flow

Create a Process Flow Diagram (PFD) that clearly maps all stages:

• Raw Material Inspection
• Gear Cutting / Hobbing
• Heat Treatment
• Gearbox Housing Machining
• Shaft Manufacturing
• Taper Lock Bush Machining/Procurement
• Assembly
• Performance Testing
• Painting & Surface Protection
• Final Inspection & Packing

Each process step must have:

• Inputs
• Outputs
• Quality requirements
• Controls and inspection checkpoints
• Responsibilities

4. Apply Failure Mode & Effects Analysis (FMEA)

Conduct Design FMEA (DFMEA) and Process FMEA (PFMEA).

Typical Failure Risks:

• Gear backlash too large → Noise & reduced efficiency
• Misalignment → Premature bearing wear
• Incorrect taper lock fit → Slippage or shaft damage
• Insufficient heat treatment → Gear tooth breakage
• For each failure mode:
• Identify cause
• Determine severity, occurrence, detection (S/O/D)

Supplier Quality Management

Ensure suppliers of materials and Taper Lock Bushes are controlled:

• Supplier audits
• Approved vendor list
• Incoming inspection plans
• Rejection rate tracking
• Vendor performance rating
